Product Features

Structure type:  Horizontal double pump casing structure is adopted

Applications and Transport materials:

It is mainly used in metallurgy, mines, coal, chemical plants and flotation plants to treat some corrosive slag slurry with large foam content. The pump can effectively eliminate the foam in the slurry and is an ideal product for conveying foam slurry.

Product design:  With the unique semi open foam guide impeller design, the foam can be effectively introduced into the slurry pump,so the viscous slurry can be treated more efficiently. The enlarged high-efficiency front sheath can maximize the inlet size and reduce the necessary NPSH.

Structural features

1,Transmission mode: DCZ direct drive, CRZ parallel belt drive , ZVZ upper and lower belt drive, CV belt drive.

2,The pump head structure is a double pump shell structure. According to different transmission media, the overflow parts can be made of metal or rubber materials.

Sealing mode: Packing seal, Expeller seal, Mechanical seal

Type meaning:   ZHF(R)/50

ZHF: Foam slurry pump

(R)：Rubber

50：Outlet diameter 50mm

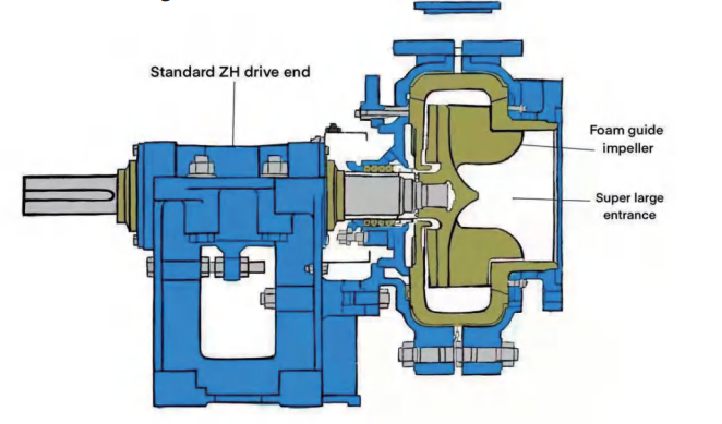

Anatomical drawing:

Structure type

Horizontal double pump casing structure is adopted.

Applications Transport materials

It is mainly used in metallurgy, mines, coal, chemical plants and flotation plants to treat some corrosive slag slurry with large foam content. The pump can effectively eliminate the foam in the slurry and is an ideal product for conveying foam slurry.

Product design

With the unique semi open foam guide impeller design, the foam can be effectively introduced into the slurry pump,so the viscous slurry can be treated more efficiently. The enlarged high-efficiency front sheath can maximize the inlet size and reduce the necessary NPSH.
