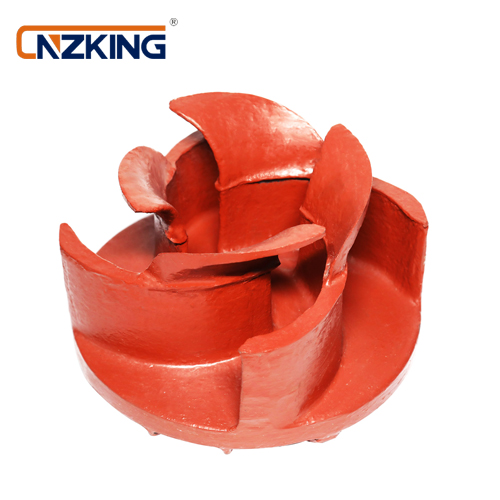

Product Structure

1.  Specialized Semi-Open Structure (Standard Configuration)

Features an open-channel design with a rear shroud but no front shroud. The flow channels are wide and unobstructed, preventing clogging by foam, sludge, or fibrous debris, making it suitable for challenging media with high foam and gas content.

2.  Front-Mounted Inducer Vane Design

The impeller inlet incorporates an integrated inducer structure that pre-treats the foam slurry by breaking down foam, stabilizing flow, and degassing. It disperses accumulated bubbles, preventing gas buildup in the pump chamber and avoiding air binding or dry running.

3.  Large-Diameter, Wide-Channel Vanes

The vanes are hydrodynamically optimized with gentle curvature and large flow cross-sections to ensure smooth intake. This allows for continuous suction without cavitation or loss of prime, even with uneven feed or low liquid levels.

4.  Precision Casting

Manufactured via integral casting, ensuring high concentricity and stable dynamic balance. Precise clearances with the pump casing, liners, and volute result in minimal operational vibration and low noise levels.

Key Product Features

1.  Specialized for Foam Media: No Air Binding or Flow Interruption

Standard impellers are prone to gas accumulation, flow interruption, and loss of discharge when handling foam slurries. This foam pump impeller features built-in foam-breaking and degassing capabilities, enabling stable transport of high-gas-content foam slurries and effectively eliminating issues such as dry running and frequent shutdowns in flotation processes. 2. Excellent resistance to clogging and superior flow-handling capabilities

Features a wide, open flow channel that easily handles foam clusters, fine ore sands, flocs, and accumulated debris; resistant to clogging during long-term operation, significantly reducing the frequency of downtime for cleaning.

3. Wear and corrosion resistance for extended service life

The main body is constructed from high-chromium wear-resistant alloy (customizable with anti-corrosive rubber options), offering high hardness and resistance to erosion and slurry corrosion; suitable for long-term, high-intensity abrasive conditions, effectively reducing the frequency of parts replacement.

4. Superior suction performance and adaptability

Equipped with forward-extending flow-guiding vanes that initiate suction early, ensuring stable negative pressure; maintains normal operation even with insufficient feed or fluctuating liquid levels, making it ideal for continuous flotation production lines.

5. Stable operation, energy efficiency, and high performance

Optimized hydraulic design minimizes flow resistance and maximizes hydraulic efficiency; smooth operation reduces turbulence and energy loss, resulting in long-term power savings and operational stability.
